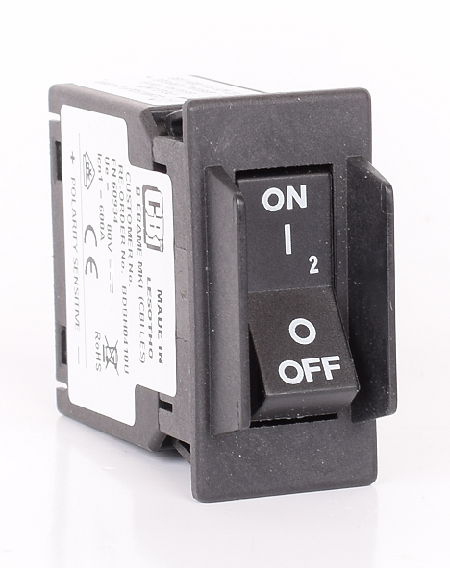

B-frame 0,1-30A for AC and DC applications

A very compact circuit breaker for space saving installations and various type of equipment protection. B-frame series can be built in one and two pole configurations. They can also be build as AC as well as DC breaker so you get correct product for your voltage. B-frame is approved to IEC/EN 60934. On the UL side it exist as UL recognized (UL1077) and UL listed to UL489A. B-frame also carry CCC-approval for the Chinese market.

Want to know more about this product, contact me

Andreas Anselmius

andreas.anselmius@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

Just as the other CBE products from CBI, the B-frame is built up of several different building blocks, like a “LEGO”. I.e. there are many different variables that can be combined to suite your application in the best possible way. Example is, except of obvious options like rated current and time delay, is: Handle, terminals, color, printing, auxilliary switch, trip alarm switch etc. The classic rocker handle can even be supplied with illumination, the illuminated rocker.



For more details and options, see the general datasheet and drawing under "datasheet and files".

In order to have best possible price and availability we have focused on one standard range for DC use, see special datasheet as well as part number under "products variants".
