Front mounting for RCBO

The very popular RCBO, QF17A, is a component intended for mounting on traditional DIN or mini rail. However, we have developed an adapter which makes it possible to mount in a front cover instead. We have been involved in several projects that would like to utilize the unique features of the QF17A (not sensitive to temperature, compact dimensions, both UL and VDE approval etc.) but for mounting into an enclosure with other front mounted components.

Want to know more about this product, contact me

Nicklas Erixon

nicklas.erixon@emcomp.se

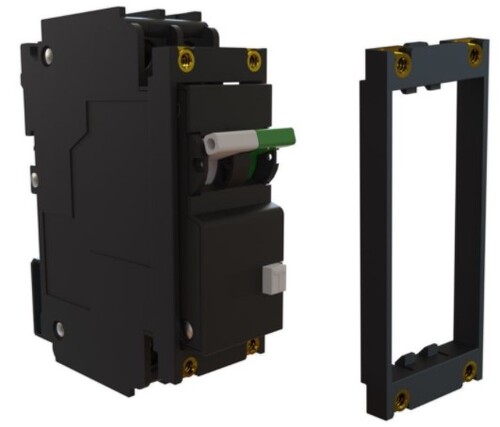

With the mounting frame EC211002-1 the RCBO is easily snapped into the frame and the complete unit is then mounted with M3 screws in the front plate.

Part number for the mounting frame QF17A: EC211002-1

File name

File type

File size

Download

EC211002-1_emcomp

pdf

100 KB

QF17A 5-63A RCBO with 30-300mA sensitivity

QF17A is a very compact RCBO for rated current between 5 and 63A. Standard sensitivity is 30mA but more options are available. The circuit breaker part in QF17A is designed with the same Hydraulic-Magnetic principle as the other CBI MCBs. This means that high or low ambient temperatures is no problem for reliable function. This is then combined with a very exact electronic sensing of earth leakage currents. All together making an excellent product for demanding applications.
