Surface mounting bracket for DD-frame

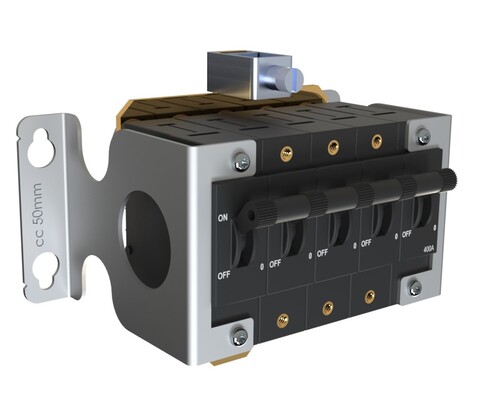

Our battery circuit breaker, the DD-frame, is a CBE product,. CBE stands for “Circuit Breaker for Equipment”, which is intended for mounting in a front cover or similar. If you would like to use a DD-frame in an easy way but are missing front plate/enclosure to mount it in we have developed a bracket that easily can be mounted on any flat surface. It is made of very durable Aluzinc steel. Application example is for instance if you have a battery system or similar that you wish to protect but you have no enclosure or maybe limited space in your existing enclosure. The recommended usage is one holder for a single pole breaker and two holders for 2-5 pole breakers.

Want to know more about this product, contact me

Mårten Klingström

marten.klinkgstrom@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

For circuit breakers with standard toggle handle the bracket can be used on both sides. That means, you can use the same part number on both sides of the circuit breaker.



If you are using a circuit breaker with Flush-Rocker handle the panel cut out is asymmetric and therefore it requires two different versions of holder depending on if the holder should be mounted to the left or right side of the circuit breaker.



Part number for standard toggle handle, fits on both side of the CB: EC210102-1

Part number for Flush-Rocker handle with mounting on the left side of the CB: EC211805-1

Part number for Flush-Rocker handle with mounting on the right side of the CB: EC211805-2

Part Number

Description

Specification

EC211805-1

Flush-Rocker handle

left mounting

EC211805-2

Flush-Rocker handle

right mounting

EC210102-1

Toggle handle

both sides
