Circuit Protection to rely on - HYMAG circuit breakers

The HY-MAG principle

Relays & Controls from Thiim A/S

Emcomp is a proud partner of Thiim A/S. Efficient power supply is crucial for optimised performance! Thiim relay solutions not only ensure accurate fault detection, but also provide valuable insights into the health condition of the electrical installation.

Emcomp at different fairs

During the fall and winter, you will have the opportunity to meet us at several different trade fairs. Currently, our company is diveded into two different websites, but we are working on combining these two one website.

The technique makes us unique

The HYMAG-technique is the key factor to the success of the CBI products. Curious to learn how the HYMAG-technique is working?

B-frame 0,1-30A for AC and DC applications

A very compact circuit breaker for space saving installations and various type of equipment protection. B-frame series can be built in one and two pole configurations. They can also be build as AC as well as DC breaker so you get correct product for your voltage. B-frame is approved to IEC/EN 60934. On the UL side it exist as UL recognized (UL1077) and UL listed to UL489A. B-frame also carry CCC-approval for the Chinese market.
DD-frame 0,5-400A for AC and DC applications

A very powerful but yet compact circuit breaker. The DD-frame range is well suited as a main breaker for battery applications and as distribution breaker for large loads. DD-frame can handle rated current up to 400A when it is delivered as a paralleled DC circuit breaker. Just as the other CBE products from CBI, the DD-frame is built up of several different building blocks, like a “LEGO”. That means, there are many different variables that can be combined to suite your application in the best possible way. Example is, except of obvious options like rated current and time delay, is: handle, terminals, color, printing, auxilliary switch, trip alarm switch etc. The most popular handle is the “Flush-Rocker” handle which is totally flat when the breaker is turned on in order to prevent accidental switching off.

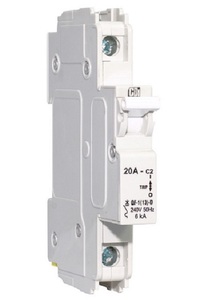

QF13mm AC MCB for 230-415VAC 0,1-25A

QF13 is a rail mounted circuit breaker for AC usage but it has two unique features compared to traditional thermal magnetic MCBs. QF13 keep rated current regardless of ambient temperature. If you have a challenge with high ambient temperatures in your equipment you can rely on that QF13 always keep the rated current. I.e. no de-rating is needed. Like all our Hydraulic-Magnetic circuit breakers it is designed and certified to be loaded at 100% of rated current continuously. QF13 is built with 13 mm modular width instead of 18 mm as a traditional MCB. This means > 30% more distribution points in the same space.
Battery Breaker Boxes

The hydraulic-magnetic circuit breakers from CBI are well suited as battery breakers and Emcomp offer enclosed solutions for reliable circuit protection. The design ensures quick and easy connection in a very compact enclosure and the standard range consists of wide range of rated currents and connection points but we can also offer customized solutions based on your requirements and specifications. The enclosures are UV-resistant and can be delivered according to IP67 which ensures a wide range of suitable application areas.
