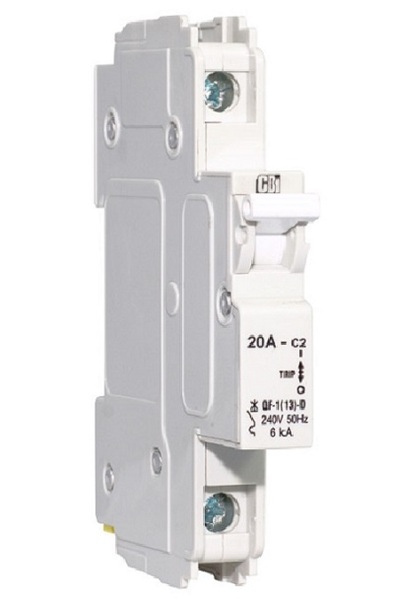

QF13mm AC MCB for 230-415VAC 0,1-25A

QF13 is a rail mounted circuit breaker for AC usage but it has two unique features compared to traditional thermal magnetic MCBs. QF13 keep rated current regardless of ambient temperature. If you have a challenge with high ambient temperatures in your equipment you can rely on that QF13 always keep the rated current. I.e. no de-rating is needed. Like all our Hydraulic-Magnetic circuit breakers it is designed and certified to be loaded at 100% of rated current continuously. QF13 is built with 13 mm modular width instead of 18 mm as a traditional MCB. This means > 30% more distribution points in the same space.

Want to know more about this product, contact me

Andreas Anselmius

andreas.anselmius@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent



QF13 has rated current up to 25A and can be delivered in 1-4 pole configurations. QF 13 is approved to IEC 60947-2 and UL1077. Breaking capacity is 6kA.



QF13 can be delivered with factory fitted accessories such as auxilliary and trip alarm contact as well as  trip coil that can be used to switch off the circuit breaker remotely. See our datasheet for further details.



Just as the rest of the Q-range, QF13 can be delivered in both grey version with 45 mm front escutcheon and black version with 57 mm front escutcheon.




Part Number

Poles

Rated current

Characteristics

QFB18201

1

1A

Medium

QFB18202

1

2A

Medium

QFB18204

1

4A

Medium

QFB18206

1

6A

Medium

QFB18210

1

10A

Medium

QFB18216

1

16A

Medium

QFB18220

1

20A

Medium

QFB18225

1

25A

Medium

QFB28201

2

1A

Medium

QFB28202

2

2A

Medium

QFB28204

2

4A

Medium

QFB28206

2

6A

Medium

QFB28210

2

10A

Medium

QFB28216

2

16A

Medium

QFB28220

2

20A

Medium

QFB28225

2

25A

Medium

QFB38201

3

1A

Medium

QFB38202

3

2A

Medium

QFB38204

3

4A

Medium

QFB38206

3

6A

Medium

QFB38210

3

10A

Medium

QFB38216

3

16A

Medium

QFB38220

3

20A

Medium

QFB38225

3

25A

Medium

QFB41201

3+N

1A

Medium

QFB41202

3+N

2A

Medium

QFB41204

3+N

4A

Medium

QFB41206

3+N

6A

Medium

QFB41210

3+N

10A

Medium

QFB41216

3+N

16A

Medium

QFB41220

3+N

20A

Medium
