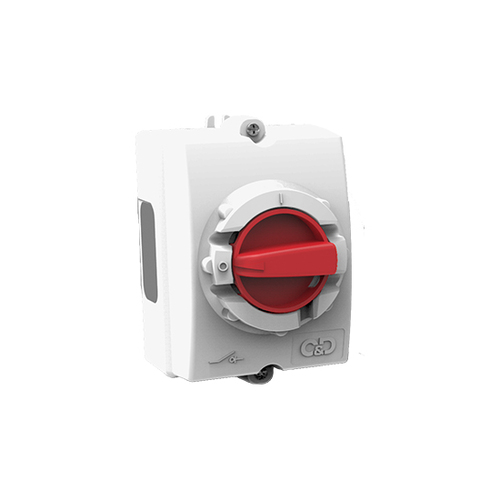

Moulded plastic enclosed switchgear

A range of moulded plastic enclosed isolation equipment with sealing up to IP66. All units have a padlockable handle which allow for the insertion of up to three padlocks in the ‘Off’ position thus preventing the isolator being switched to the ‘On’ position. The units offer the option of adding a selection of auxiliary blocks, providing additional contacts and a choice of Neutral assemblies. All units are interlocked in the ON position preventing the lid from being removed.

Want to know more about this product, contact me

Nicklas Erixon

nicklas.erixon@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

Compliant to IEC / BS EN 60947-3.

Part Number

Rated current

Poles

IP rating

Enclosure Material

EDP206

20A

6

IP66

Plastic

EDP206EB

20A

6+2E/B

IP66

Plastic

EDP252

25A

2

IP66

Plastic

EDP253

25A

3

IP66

Plastic

EDP253EB

25A

3+2E/B

IP66

Plastic

EDP253N

25A

3+N

IP66

Plastic

EDP253NL

25A

3+NL

IP66

Plastic

EDP322

32A

2

IP66

Plastic

EDP323

32A

3

IP66

Plastic

EDP323EB

32A

3+2E/B

IP66

Plastic

EDP323N

32A

3+N

IP66

Plastic

EDP323NL

32A

3+NL

IP66

Plastic

EDP402

40A

2

IP65

Plastic

EDP403

40A

3

IP65

Plastic

EDP406

40A

6

IP65

Plastic

EDP406EB

40A

6+2E/B

IP65

Plastic

EDP632

63A

2

IP65

Plastic

EDP633

63A

3

IP65

Plastic

EDP633EB

63A

3+2E/B

IP65

Plastic

EDP633N

63A

3+N

IP65

Plastic

EDP633NL

63A

3+NL

IP65

Plastic

EDP802

80A

2

IP65

Plastic

EDP803

80A

3

IP65

Plastic

EDP803EB

80A

3+2E/B

IP65

Plastic

EDP803N

80A

3+N

IP65

Plastic

EDP803NL

80A

3+NL

IP65

Plastic

SDP206

20A

6

IP66

Plastic

SDP206EB

20A

6+2E/B

IP66

Plastic

SDP252

25A

2

IP66

Plastic

SDP253

25A

3

IP66

Plastic

SDP253EB

25A

3+2E/B

IP66

Plastic

SDP253N

25A

3+N

IP66

Plastic

SDP253NL

25A

3+NL

IP66

Plastic

SDP322

32A

2

IP66

Plastic

SDP323

32A

3

IP66

Plastic

SDP323EB

32A

3+2E/B

IP66

Plastic

SDP323N

32A

3+N

IP66

Plastic

SDP323NL

32A

3+NL

IP66

Plastic

SDP402

40A

2

IP65

Plastic

SDP403

40A

3

IP65

Plastic

SDP403EB

40A

3+2E/B

IP65

Plastic

SDP403N

40A

3+N

IP65

Plastic

SDP403NL

40A

3+NL

IP65

Plastic

SDP406

40A

6

IP65

Plastic

SDP406EB

40A

3+2E/B

IP65

Plastic

SDP632

63A

2

IP65

Plastic

SDP633

63A

3

IP65

Plastic

SDP633EB

63A

3+2E/B

IP65

Plastic

SDP633N

63A

3+N

IP65

Plastic

SDP633NL

63A

3+NL

IP65

Plastic

SDP802

80A

2

IP65

Plastic

SDP803

80A

3

IP65

Plastic

SDP803EB

80A

3+2E/B

IP65

Plastic

SDP803N

80A

3+N

IP65

Plastic

SDP803NL

80A

3+NL

IP65

Plastic

SDP1002

100A

2

IP65

Plastic

SDP1003

100A

3

IP65

Plastic

SDP1003EB

100A

3+2E/B

IP65

Plastic

SDP1003N

100A

3+N

IP65

Plastic

SDP1003NL

100A

3+NL

IP65

Plastic

File name

File type

File size

Download

EDP-SDP-Range-2021_C&D
pdf
745 KB
