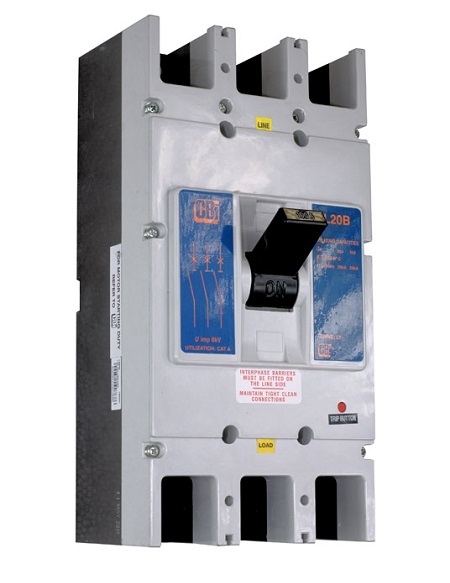

L-frame (100-600A AC, 800-1500A DC)

A very robust Hydraulic-Magnetic MCCB (Molded Case Circuit Breaker). In DC configuration it’s ideal to use as main breaker in large battery systems thanks to its rated current of up to 1500A DC. The L-series are, just as the rest of the CBI MCBs, based on the Hydraulic-Magnetic principle. This means that they will keep rated current regardless of the ambient temperature and they are designed and certified to carry 100% of the rated current without de-rating.

Want to know more about this product, contact me

Andreas Anselmius

andreas.anselmius@emcomp.se

Do you want to know more about our products, please subscribe to our newsletter

When you subscribe to our newsletter we will save your e-mail address in our system. You can always unsubscribe in the link in the newsletter or e-mail us at info@emcomp.se

Valid email is required

Your message has been sent

The L-frame in DC configuration is delivered with busbars for paralelling up to 1500A. The DC products are UL listed as per UL489A.



For more information see "Datasheet".

Part Number

Poles

Rated current

L20BDC1500S30

1 electrical

1500A

L20BDC0800

1 electrical

800A

L20BDC1000S30

1 electrical

100A
